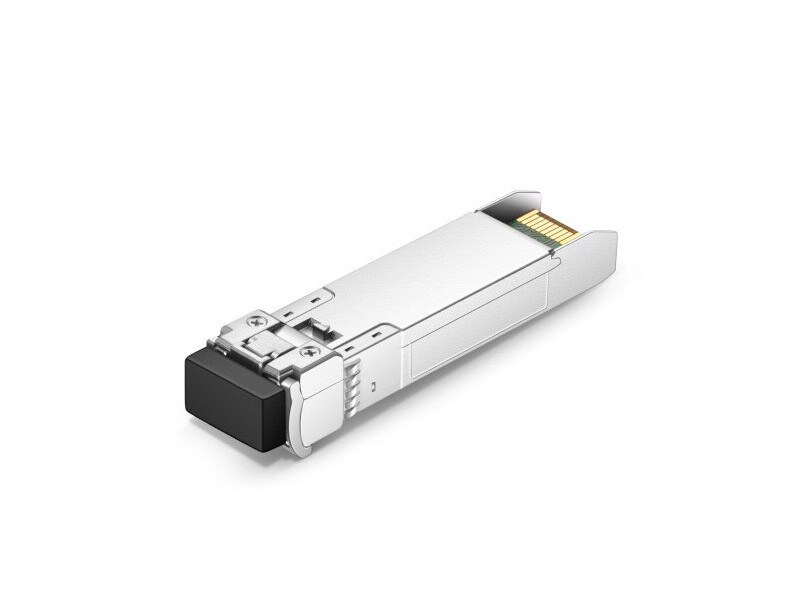

PAR-BIDI-SFP+10G-ER-40km

SFP+ 10G 40km PARES SM BIDI LC Optical Transceiver Module con DOM

Iniciá sesión para ver el precio
Condición IVA:
10.5 %
Código de Producto:
S040K010GBESSL
Disponibilidad:
+4 en Stock
Envio del producto a todo el Pais.

SFP+ 10G 40km TX1270nm SM BIDI LC Optical Transceiver Module con DOM

Especificaciones del Producto
Form Factor: SFP+ Data Rate: 10Gbps
Wavelength: 1270nm-TX/1330nm-RX Distance: 40km
Connector: LC Simplex Cable Type: OS2 SMF
Transmitter Type: DFB Receiver Type: PIN
TX Power: +1~+5dBm Receiver Sensitivity: <-15dBm
Power Consumption: <1W Temperature Range:
0 to 70°C (32 to 158°F)
DDM: Support Bit Error Ratio (BER): 1.00E-12
Protocols: Fast Ethernet, Gigabit Fibre Channel, MSA Compliant Warranty: 3 Years

 SFP+ 10G 40km TX1330nm SM BIDI LC Optical Transceiver Module con DOM

Especificaciones del Producto
Form Factor: SFP+ Data Rate: 10Gbps
Wavelength: 1330nm-TX/1270nm-RX Distance: 40km
Connector: LC Simplex Cable Type: OS2 SMF
Transmitter Type: DFB Receiver Type: PIN
TX Power: +1~+5dBm Receiver Sensitivity: <-15dBm
Power Consumption: <1W Temperature Range:
0 to 70°C (32 to 158°F)
DDM: Support Bit Error Ratio (BER): 1.00E-12
Protocols: Fast Ethernet, Gigabit Fibre Channel, MSA Compliant Warranty: 3 Years

Compatibilidad

MSA

El Multi Source Agreement (MSA) es un acuerdo entre múltiples fabricantes para garantizar la interoperabilidad.






Pruebas de Transcivers Opticos


Temperatura
Parametros

Pruebas de potencia de salida, Sensibilidad en la recepcion y Temperatura de trabajo

Estres
Funcionamiento

Comprobacion de CRC, prueba de BERT y el cumplimiento de diferentes test de RFC

MSA
Compatibilidad

Compatibilidad de formato, certificacion MSA y cumplimiento de estandares de IEEE
